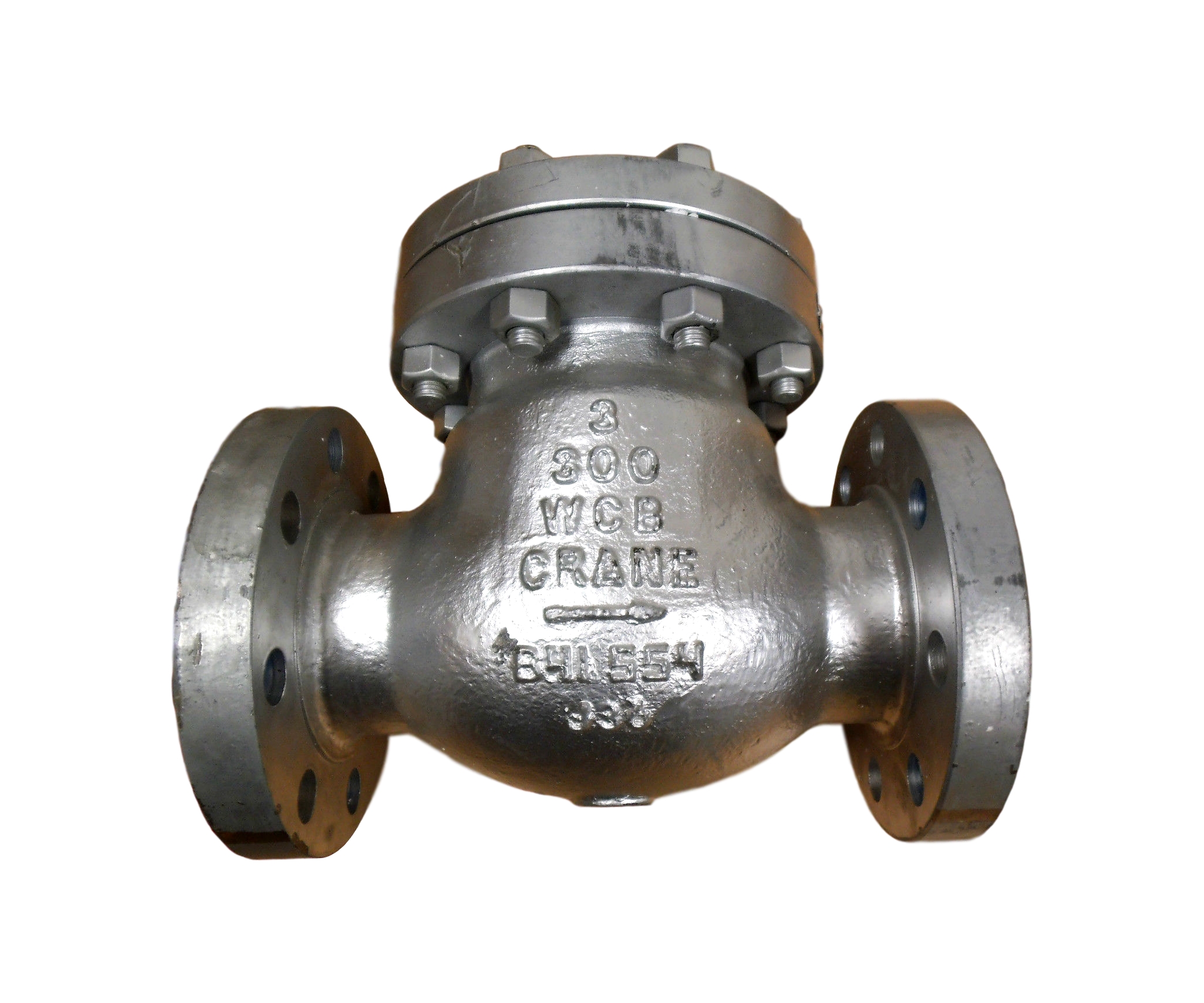

Crane brand cast iron flange check valve assembly. Part number: 159XU. Class 300.

Due to the way they are shipped and stored, small paint chips in various location of the valve is expected.

Cast Steel • Bolted Cap • Flanged

 Swing check valves prevent reversal of flow through the pipeline

 Can be installed in horizontal or vertical, upward flow piping

 Offer low resistance to flow and are particularly suited to low velocity service

 Seat ring is seal welded to eliminate leak paths

Pressure Temperature Rating

Carbon Steel

ASTM A216 Grade WCB

740 psi -20°F to 100°F

Description Material

Body A216 WCB

Bonnet A216 WCB

Seat Ring Hardfaced

Disc 13 CR Overlay

Hinge WCB
