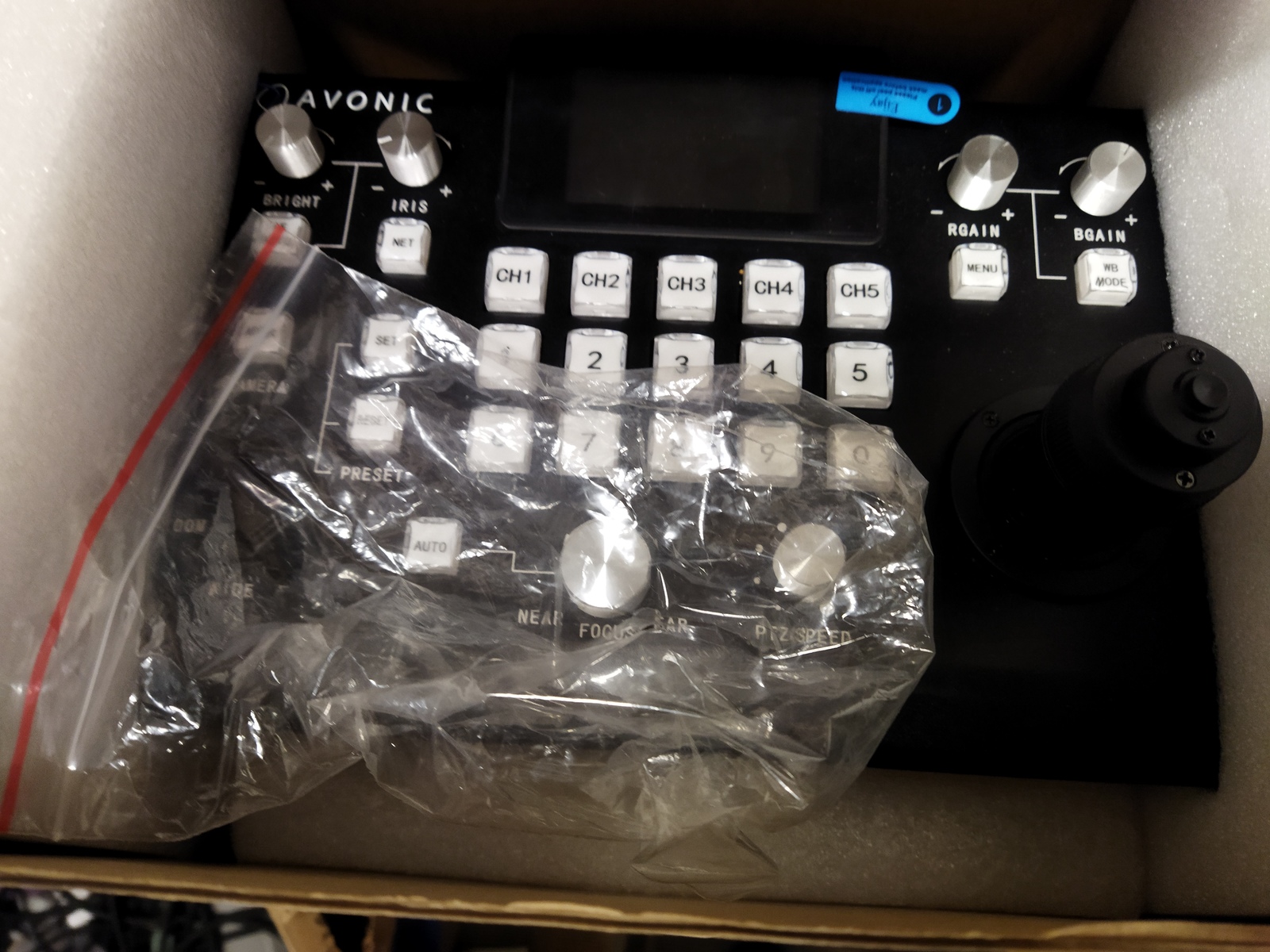

AVONIC AV-CON300-IP – PTZ Camera Controller (IP Serial) The AVONIC AV-CON300-IP is a professional hybrid PTZ camera controller designed for precise control of PTZ cameras over both IP networks and serial connections (RS232/RS485). It is widely used in broadcast, conferencing, education, and live production environments where reliable multi-camera control is required. The controller supports multiple protocols, allowing integration with both modern IP-based systems and legacy serial camera installations. Key Features Hybrid control: IP (VISCA over IP) + RS232 / RS485 serial control Supports multiple protocols: VISCA, VISCA over IP, Pelco-D, Pelco-P High-precision 3D joystick for pan, tilt, and zoom control Control of up to 255 cameras (IP systems) Up to 10 presets per camera for quick recall Direct control of key camera parameters: Zoom / Pan / Tilt Focus (auto/manual) Iris / exposure White balance / color correction Intuitive LCD menu interface with OSD control Mix of IP and serial cameras in one system Rack or desktop operation Technical Specifications Model: AV-CON300-IP Type: PTZ camera controller (IP + Serial hybrid) Control Interfaces: IP network (Ethernet, VISCA over IP) RS232 RS485 Protocols Supported: VISCA VISCA over IP Pelco-D Pelco-P System Capacity: Up to 255 cameras via IP Multiple serial-controlled cameras Up to 10 presets per camera Controls: 3-axis joystick (pan / tilt / zoom) Dedicated function buttons for camera settings Speed control for PTZ movements Physical Characteristics Desktop controller with ergonomic joystick design Built for continuous professional use Compact and durable housing suitable for control rooms and live production setups Applications Broadcast studios Live events and stage production Conference rooms and lecture halls Security and surveillance camera control Houses of worship Government and corporate AV systems Advantages for Buyers Works with both new IP cameras and older serial systems Extremely flexible multi-camera control Smooth and precise joystick operation Professional-grade compatibility with industry protocols Ideal for scalable AV installations
