RJ1S-C-D24 Idec Plug-in Power Relay 24VDC and similar items

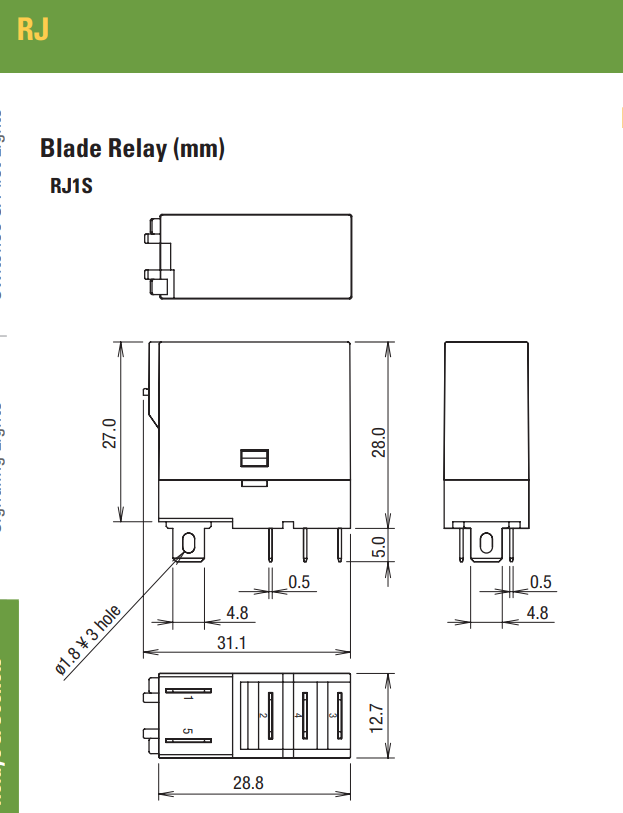

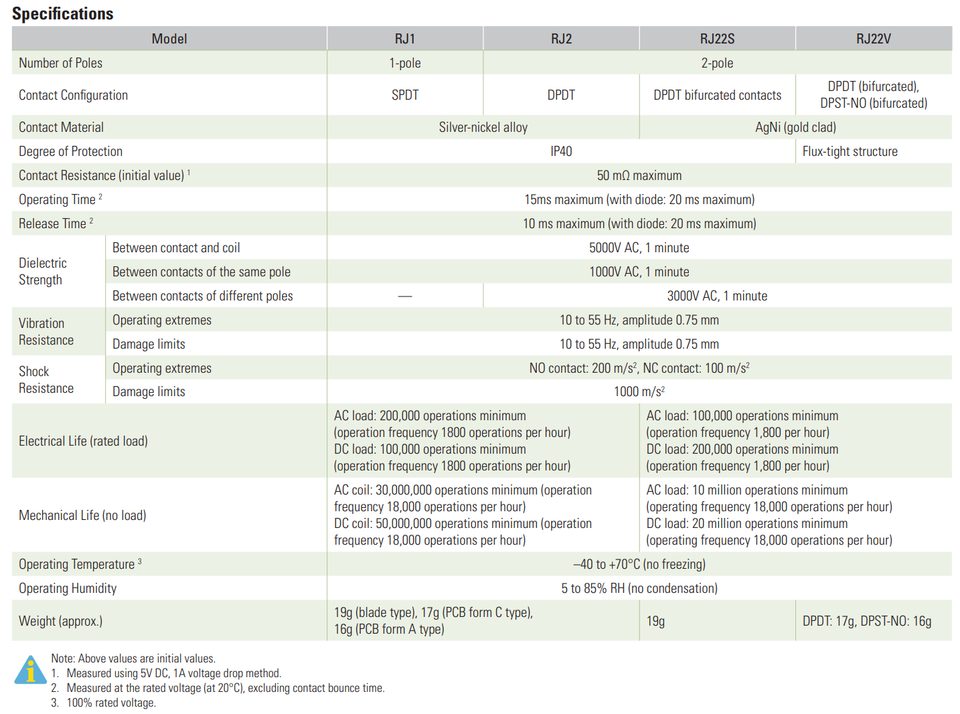

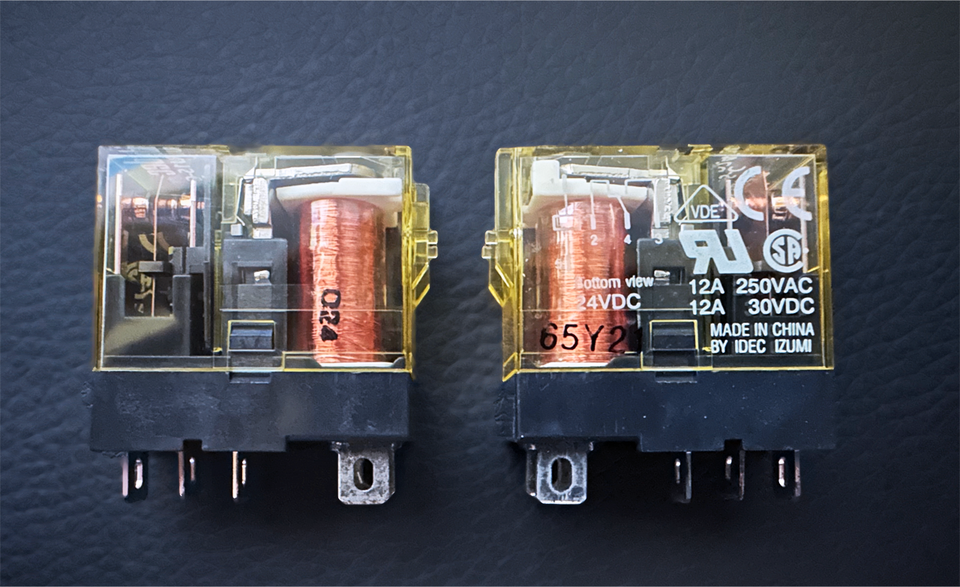

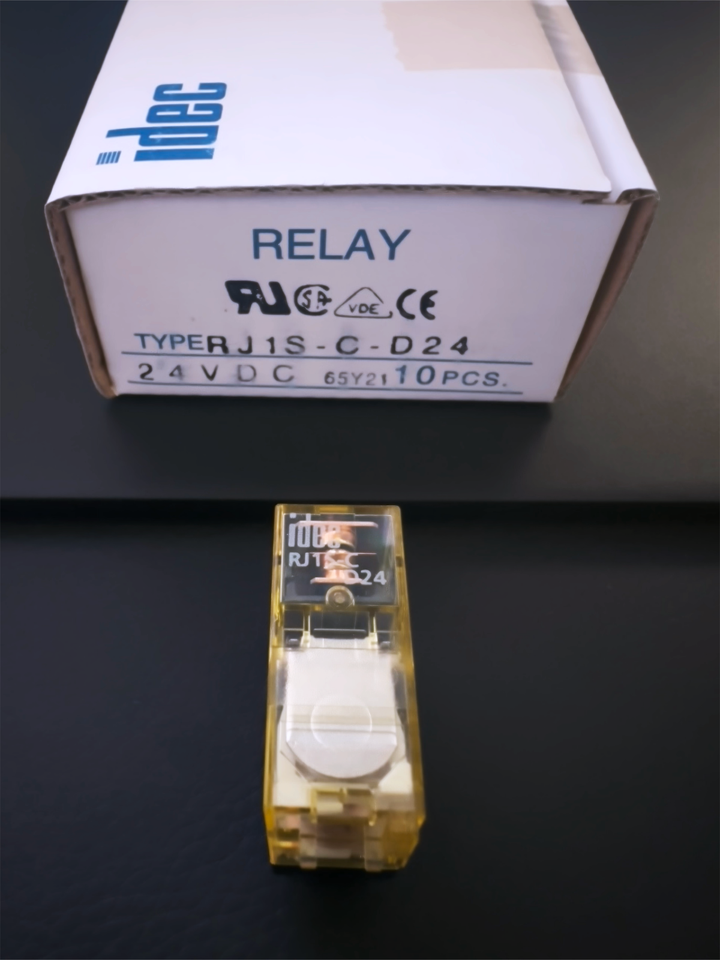

Store Seller Profile Feedbacks Contact Relays Timers General Purpose Relays DC Coil Power Relays close 1 Piece of RJ1S-C-D24 IDEC Plug-in Power Relay 24VDC SPDT 12A 31.1x12.7x28 mm Ready to Ship Ask a Question 30-Day Return Description Disclaimer Specifications Shipping Return Policy 1 Unit of RJ1S-C-D24 IDEC Plug-in Power Relay 24VDC SPDT 12A 31.1x12.7x28 mm Sofitrek Product Disclaimer Nature of Goods: All products offered by Sofitrek are surplus items. These products may originate from older batches, series, or have earlier date codes compared to those currently provided by the original manufacturers or their authorized dealers. Non-Affiliation: Sofitrek operates independently and is not an authorized distributor, nor is it affiliated or associated with the manufacturers of the products sold. Consequently, Sofitrek does not represent the manufacturers of these products in any capacity. Exclusion of Manufacturer's Warranty: Since Sofitrek is not an authorized distributor, the original manufacturer's warranties are explicitly not applicable to the products sold. This includes any implied warranties of merchantability or fitness for a particular purpose. Firmware and Software: Some products may include pre-installed firmware or software. However, Sofitrek does not guarantee the presence, compatibility, or the revision level of such firmware or software as suitable for your specific application. Furthermore, Sofitrek expressly disclaims any representation regarding your right or ability to download, obtain, or install any firmware or software for the products from any source, including the original manufacturers or their distributors. Limitation of Liability: Sofitrek shall not be held liable for any form of damages?direct, indirect, incidental, consequential, or otherwise?arising from the use, misuse, or inability to use any product sold. This includes, but is not limited to, damages for loss of profits, goodwill, use, data, or other intangible losses. The buyer assumes all responsibility for the safe and lawful use of the product and agrees to indemnify and hold harmless Sofitrek against any claims, liabilities, or expenses related to the product's use. Compliance and Responsibility: The buyer is solely responsible for adhering to all terms of any End-User License Agreement or similar documentation related to the products, particularly concerning the obtaining, installation, and use of firmware or software. By purchasing from Sofitrek, the buyer acknowledges having read, understood, and agreed to this disclaimer in its entirety. Specification Manufacturer IDEC CORP Series RJ1S Model RJ1S-C-D24 Coil Voltage 24V DC Contact Form SPDT Contact Rating 12A Contact Material Silver-nickel alloy Coil Resistance 1080 ? Rated Current 22.1 mA Power Consumption 0.53W Pickup Voltage 70% max Dropout Voltage 10% min Max Continuous Voltage 160% Operate Time 15 ms max (with diode: 20 ms max) Release Time 10 ms max (with diode: 20 ms max) Insulation Resistance 100 M? min (DC 500V) Dielectric Strength (Contact and Coil) 5000V AC, 1 min Dielectric Strength (Contacts of Same Pole) 1000V AC, 1 min Dielectric Strength (Contacts of Different Poles) 3000V AC, 1 min Vibration Resistance (Damage Limits) 10 to 55 Hz, 0.75 mm Vibration Resistance (Operating Extremes) 10 to 55 Hz, 0.75 mm Shock Resistance (Damage Limits) 1000 m/s Shock Resistance (Operating Extremes) 200 m/s (NC contact), 100 m/s (NO contact) Mechanical Life (AC Coil) 30,000,000 ops min Mechanical Life (DC Coil) 50,000,000 ops min Electrical Life (Rated Load) 200,000 ops min Operating Temperature -40 to +70C (no freezing) Operating Humidity 5 to 85% RH (no condensation) Weight 19g (blade type) Agency Ratings (UL General Use) 250V AC: NO: 16A, NC: 6A; 30V DC: NO: 12A, NC: 6A Agency Ratings (CSA General Use) 250V AC: NO: 12A, NC: 1A; 30V DC: NO: 12A, NC: 6A Agency Ratings (VDE Resistive) 250V AC: NO: 12A, NC: 8A; 30V DC: NO: 12A, NC: 8A Agency Ratings (VDE AC-15, DC-13) 250V AC: NO: 3A, NC: 3A; 30V DC: NO: 2.5A, NC: 2A Shipping Policy Our go-to options for small to medium items are USPS Ground Advantage and USPS Priority Mail, known for their reliable tracking and peace of mind. Smaller items might qualify for USPS First Class Mail. Contact us to discuss this option before purchasing. Note: This method is less recommended due to the potential for delays. Return Policy We offer a 30-day return policy, no questions asked. If you choose to provide a reason for the return, it will assist us in improving and fix the issue. Packaging Our items are packaged according to their needs?some in ESD bags with pins secured in protective sponge, others in foam-enclosed boxes. For larger quantities, options include broken tubes for transistors or cartons. We welcome your suggestions for packaging preferences. Links Shop Feedbacks Contact Us Sofitrek
