Century DC119, C42D17NZ31A, Permanent Magnet and 13 similar items

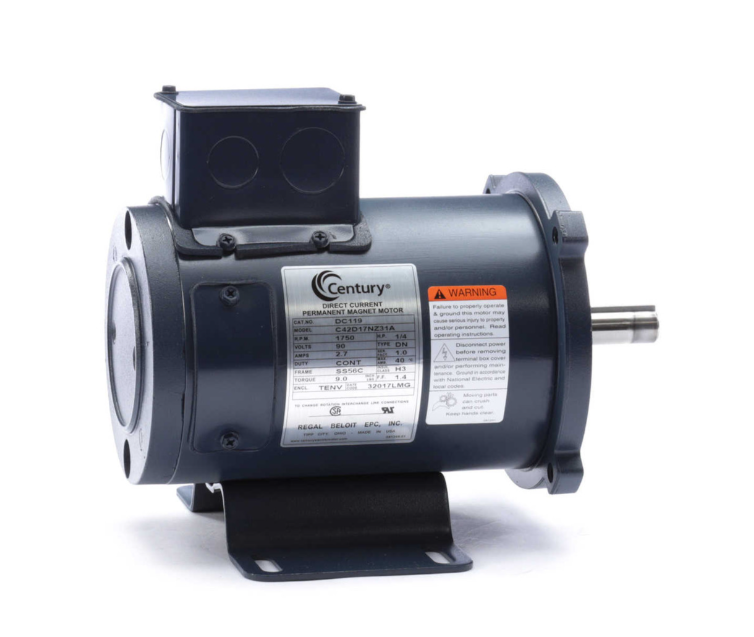

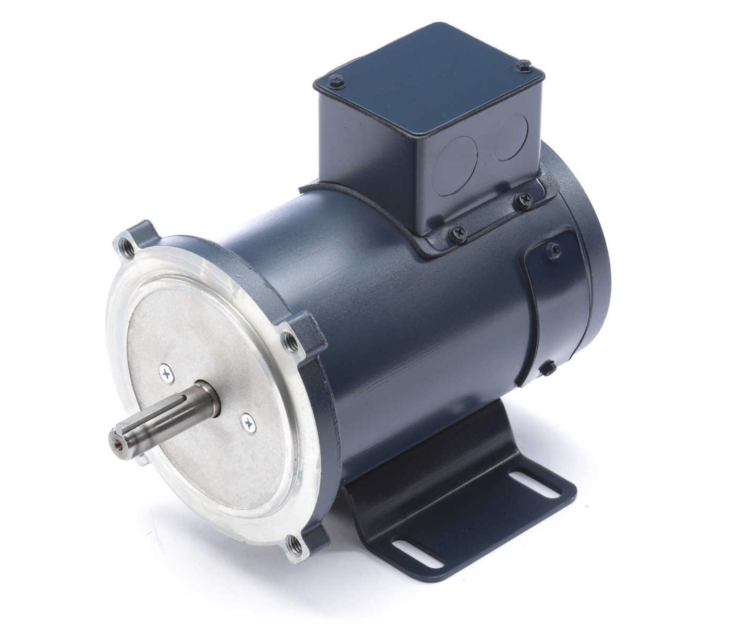

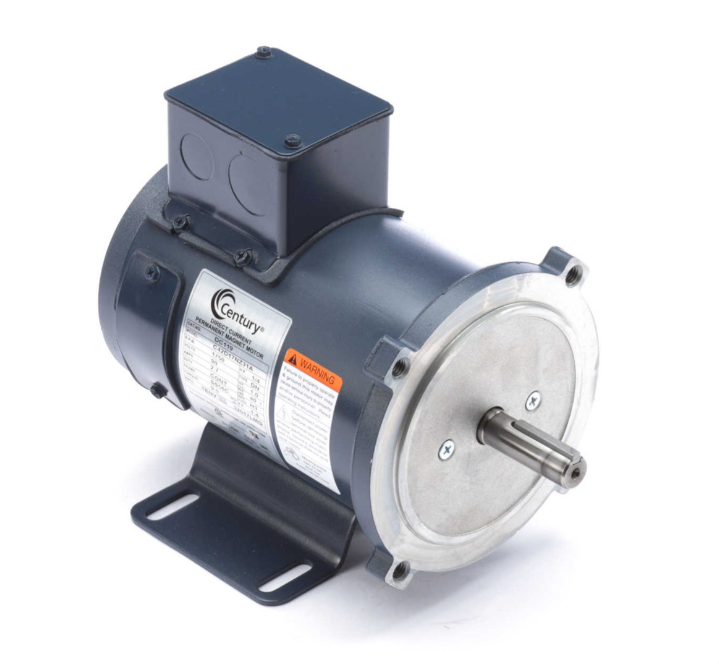

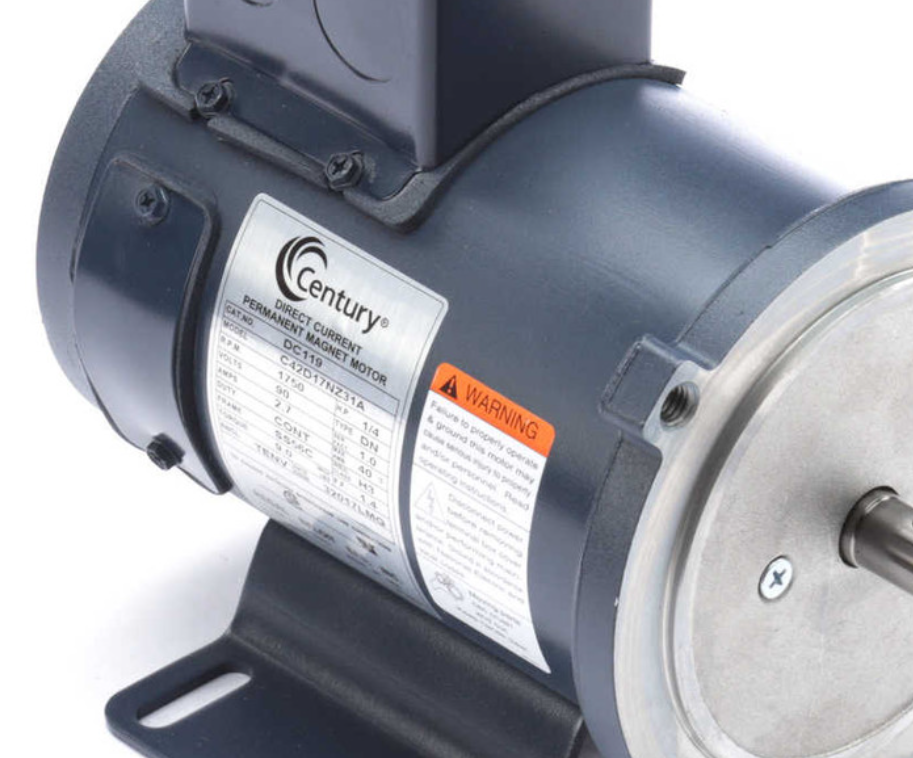

The Century DC119 (C42D17NZ31A) Permanent Magnet SCR-Rated C-Face Motor is a high-performance 1/4 HP, 1750 RPM, 90V DC motor designed for precise variable-speed control in demanding industrial applications. Built with a TENV (Totally Enclosed Non-Ventilated) enclosure, this motor is protected from dust, debris, and harsh operating environments. Its permanent magnet design, ball bearings, and Class H insulation deliver reliable torque, long service life, and excellent thermal durability. The 56C C-face frame makes it perfect for direct mounting to gearboxes, pumps, and machinery in conveyor, packaging, and automation systems. Key Features 1/4 HP, 1750 RPM DC motor Permanent magnet design for strong, consistent torque SCR-rated for accurate variable-speed control TENV enclosure for protection in dusty or dirty environments Ball bearings for extended motor life Class H insulation for high heat resistance 56C C-face frame for direct mounting compatibility 2.7 full load amps at 90V DC Specifications Part Numbers: DC119, C42D17NZ31A Horsepower: 1/4 HP RPM: 1750 Voltage: 90V DC Full Load Amps: 2.7 A Enclosure: TENV (Totally Enclosed Non-Ventilated) Frame: 56C Frame Motor Type: Permanent Magnet, SCR Rated Insulation: Class H Bearings: Ball Bearings Why Choose This Item Choose the Century DC119 for its precise speed control, durability, and compact C-face design. Engineered for variable-speed industrial machinery, this motor excels in conveyors, feeders, packaging equipment, and automation systems that demand reliable torque and long service life in challenging environments.
