2.8 Inch ESP32 CYD Development Board TFT and 47 similar items

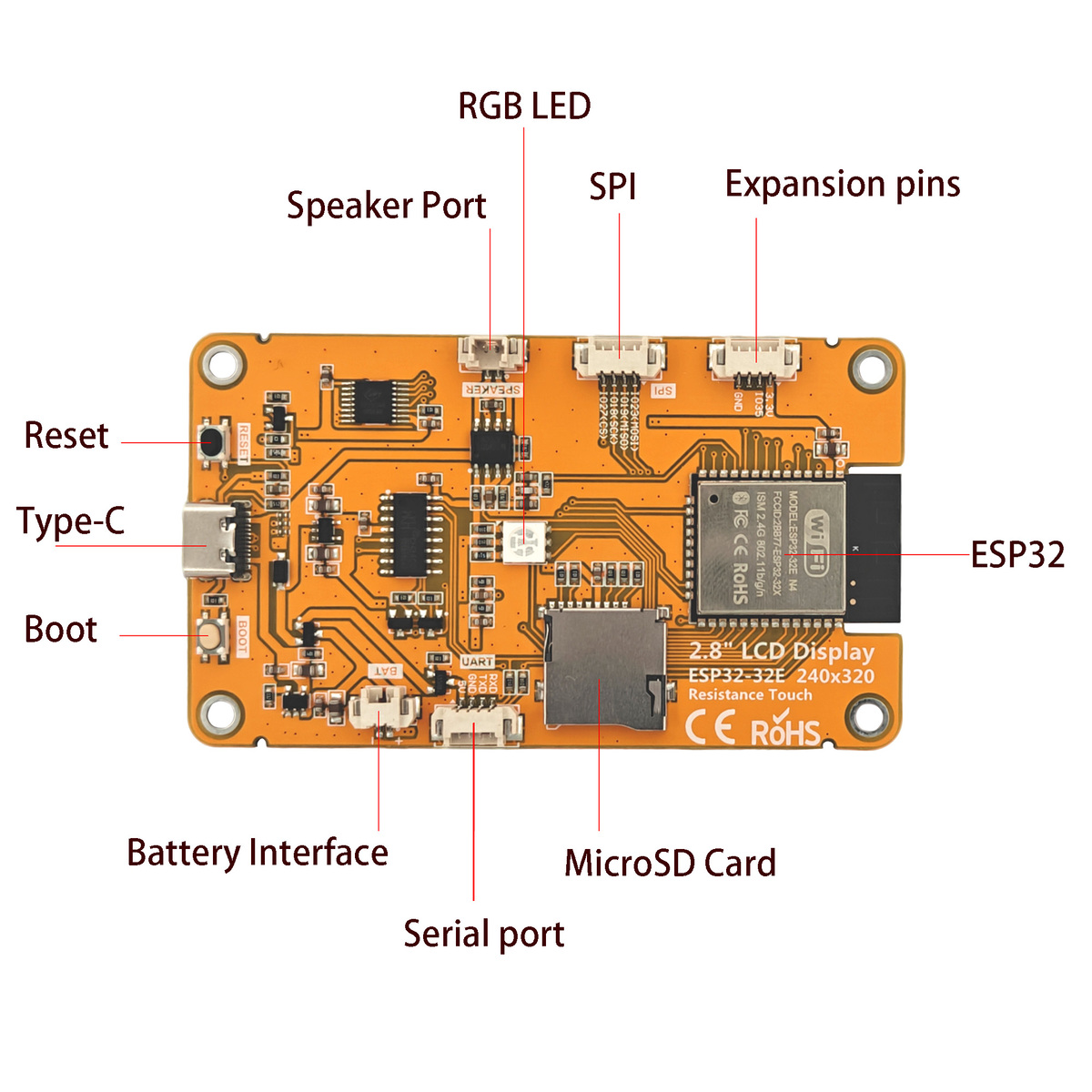

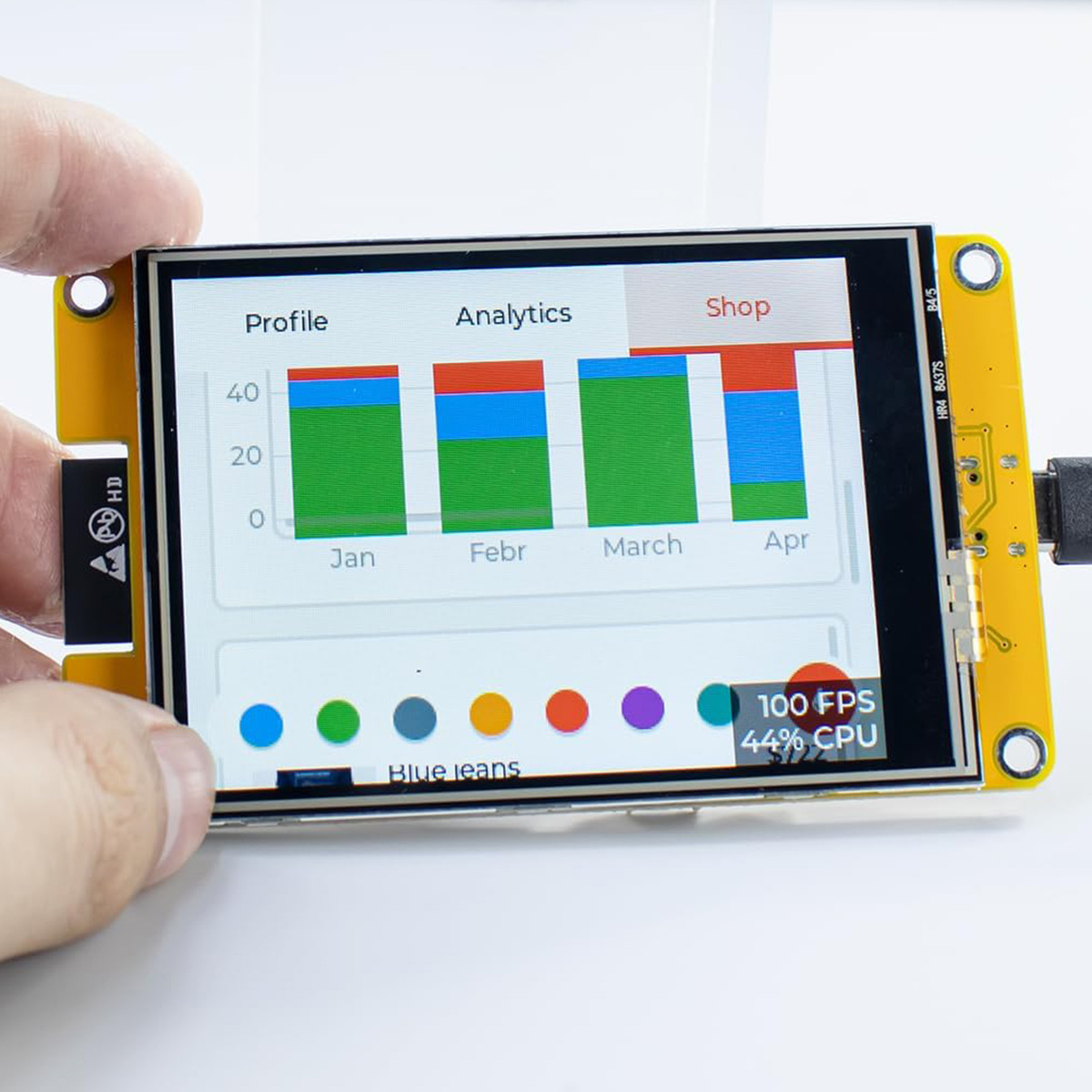

Powerful Core Performance: Equipped with ESP32-WROOM-32 main control chip, featuring dual-core MCU with a maximum frequency of 240MHz, 520KB SRAM, 448KB ROM and 4MB Flash. Integrated Wi-Fi and Bluetooth functions, enabling stable and efficient wireless data transmission, perfectly meeting the needs of various IoT and wireless communication projects. 2.8-Inch Touch Screen: Comes with a 2.8-inch color TFT display screen driven by ILI9341 chip, with a resolution of 240x320px and a resistive touchscreen for precise operation. Built-in backlight control circuit, allowing you to adjust the brightness according to the usage environment, providing clear and vivid visual effects for your project display. Rich Interfaces Strong Expandability: The development board is equipped with multiple practical interfaces, including TF card interface for external storage expansion, serial interface, DHT11 temperature and humidity sensor interface and reserved IO port interface. It also provides at least 4 available GPIOs and TX/RX pins in the extended GPIO connectors, as well as RGB LED for diversified project development. Multi-Programming Platform Support: Compatible with Arduino IDE, MicroPython and ESP-IDF programming environments, suitable for developers of different levels. Whether you are a beginner or a professional developer, you can easily get started and quickly realize your project ideas, greatly reducing the development threshold. Stable Reliable Specifications: Operating voltage is 5V, power consumption is about 115mA, product size is 50.086.0mm, and weight is about 50g. Compact size, lightweight and easy to carry and install. Stable power supply and low power consumption ensure long-term reliable operation of the project, suitable for various indoor and outdoor DIY electronic projects.
