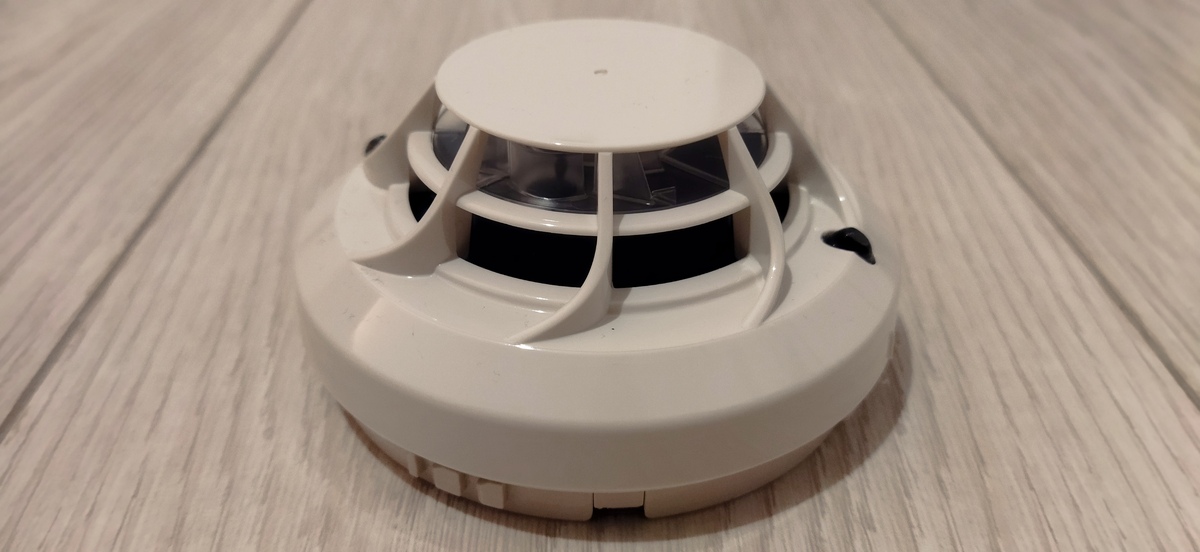

Honeywell TC806ES – Intelligent Optical Smoke Detector The Honeywell TC806ES (TC806ES1012) is an intelligent addressable optical smoke detector designed for use in advanced fire alarm systems. It operates on a loop-based communication protocol and provides reliable early detection of smoke in open-area environments. This detector is widely used in commercial, industrial, and public buildings as part of EN54-compliant fire alarm systems, ensuring high reliability and fast response to smoldering fires. Key Features Intelligent addressable optical smoke detector Photoelectric smoke sensing chamber for early fire detection Compatible with Honeywell addressable fire alarm systems Built-in dual LED indicators (360 visibility) Remote indicator output support Low power consumption in standby mode Easy plug-in installation with compatible base Designed for open-area protection Technical Specifications Model: TC806ES1012 Type: Optical smoke detector (addressable) Detection Principle: Photoelectric light scattering Electrical: Operating voltage: 15 – 32 V DC Standby current: approx. 200 µA @ 24 V Alarm current: approx. 3.5 mA (LED active) Environmental: Operating humidity: 10% – 93% (non-condensing) Designed for indoor open-area installation Certified to EN54-7 standard Functionality Detects smoke particles using optical chamber technology Continuous self-monitoring via control panel communication LED status indication (normal, alarm, fault depending on panel) Remote indicator capability for external visual signaling Address setting via rotary switches for system integration Installation Plug-in type detector for compatible bases Ceiling-mounted installation Addressable configuration via fire alarm loop Requires compatible Honeywell control panel Applications Office buildings Shopping centers Hotels and public facilities Industrial and warehouse spaces Fire safety systems in commercial infrastructure Advantages for Buyers High reliability and early smoke detection Low false alarm rate due to optical sensing design Fully addressable integration for large systems Easy maintenance and replacement Certified for professional fire safety installations
