A.O. Smith BN34V1 1 Phase 1.5HP 230V Pool or and 49 similar items

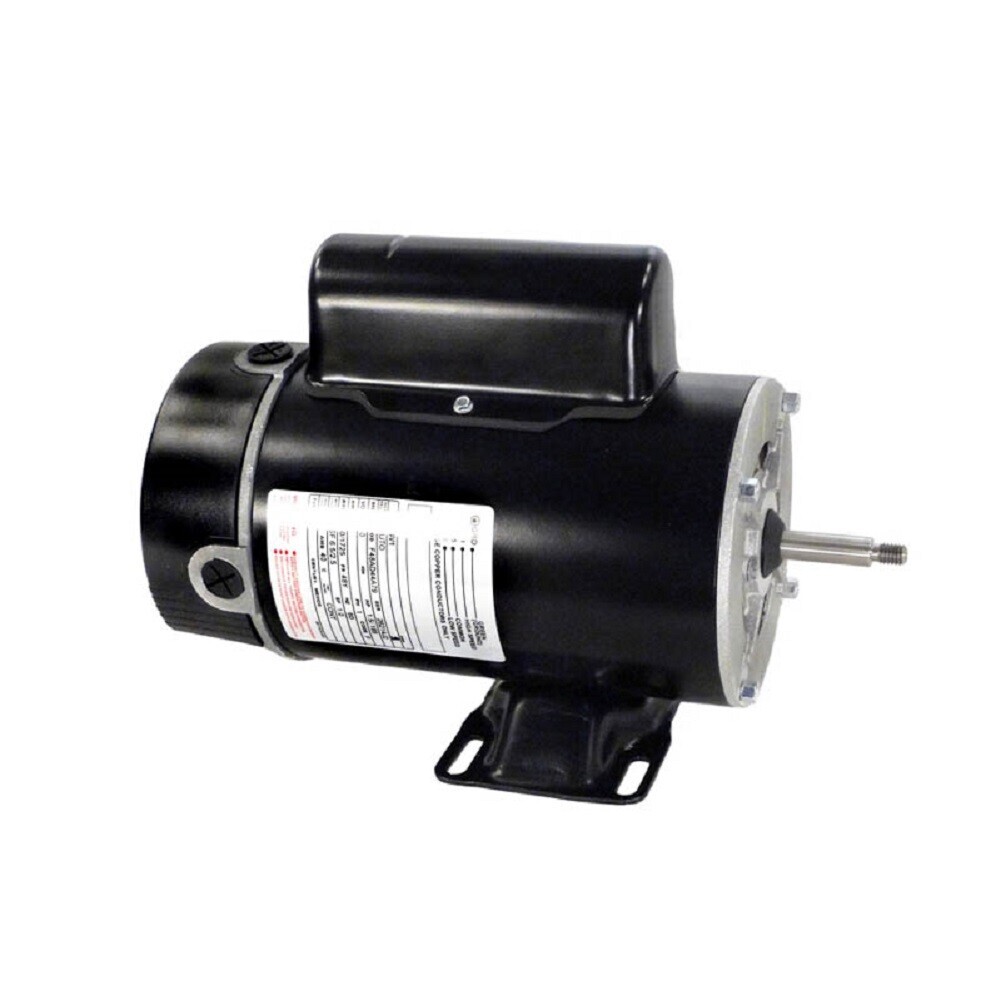

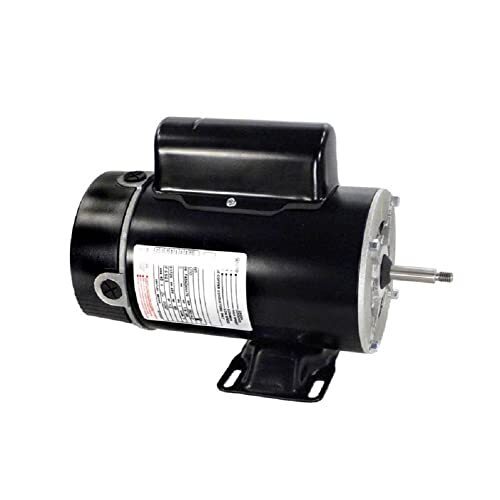

A.O. Smith BN34V1 1 Phase 1.5HP 230V Pool or Spa Motor Pump Sku: AOS-BN34V1-CIN91 This is a brand new part comes with a full manufacturer warranty!!! This sale transaction is for only this part number: BN34V1. Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 48Y frame motors thru bolt dimension is 5 1/8" on center measured across the shaft. Shaft is 1/2" diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. Specifications: Type: C/F FR: 48Y HP: 1.5/.188 SF: 1.0 PH: 1 HZ: 60 RPM: 3450/1725 ROT: CCWPE Volts: 230 Amps: 6.5/2.5 TERMS OF SALE: If, after receiving this item you discover that it was not the one you wanted, simply return it for a full refund within 14 days. Refund is void if you have installed, used or damaged the item in any way. Item must be returned with its original box, packing materials and instructions. International buyers: Customs fees, duties, taxes, tariffs other fees are your responsibility. Arrival time will depend on your location. If you have any questions, feel free to ask. Thank you for visiting! Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 48Y frame motors thru bolt dimension is 5 1/8" on center measured across the shaft. Shaft is 1/2" diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. TERMS OF SALE: If, after receiving this item you discover that it was not the one you wanted, simply return it for a full refund within 14 days. Refund is void if you have installed, used or damaged the item in any way. Item must be returned with its original box, packing materials and instructions. Recommended products Provided by A.O. Smith BN50V1 1 Phase 1.5HP 115V Above Ground Pool or Spa Pump Motor View product A.O. Smith UCT1152 1.5HP 115/230V 56J Frame Pool Pump Motor View product A.O. Smith BN62 2-Speed 230V 3HP Above Ground Pool or Spa Pump Motor View product A.O. Smith B2852 0.75HP 115-230V Square Flange Up-Rated Pool or Spa Pump Motor View product A.O. Smith B2661 0.75HP 115/208V Pool or Spa Pump Motor View product A.O. Smith UQC1152 1.5HP 115/230V Square Flange 48Y Pool Motor View product A.O. Smith SQS1152R 1.5HP 230V Dual Speed Square Flange Pool Motor View product A.O. Smith B2842 1.5HP 208-230V EE Full Rate Square Flange Pool Motor View product
