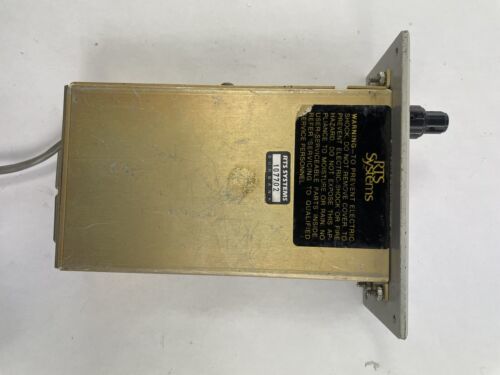

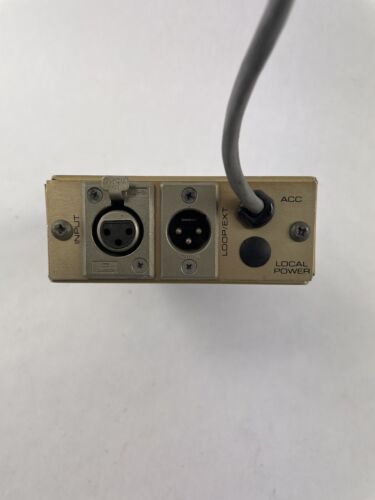

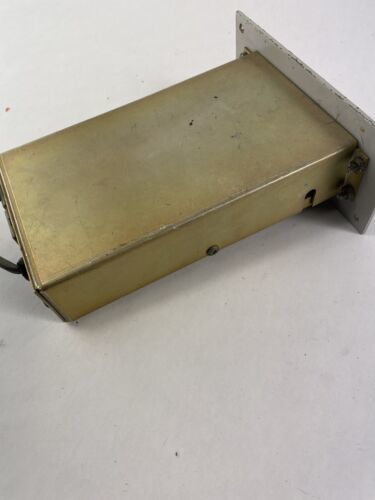

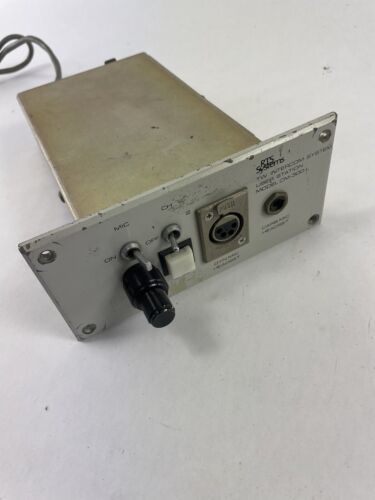

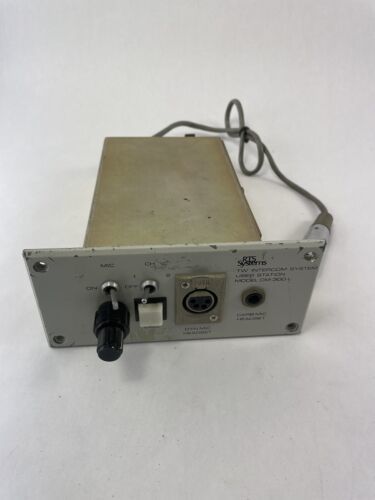

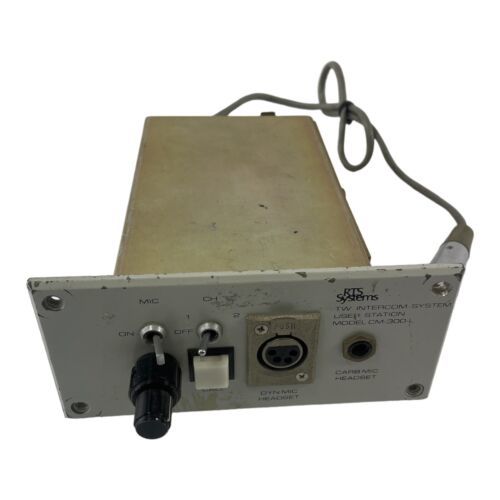

RTS Systems Model CM-300-L TW Intercom and 40 similar items

in great condition acquired from a Hollywood studio RTS' CM-300L is a console mount, two-channel intercom user station. The user station is designed to be used in a full duplex, conference line intercom system. Features: The volume control on the CM-300L has a wide range to compensate for: user hearing differences, ambient noise variation, variations in headset / handset sensitivity, and variations in voice. The volume control in the CM-300L reduces distortion by driving the headphone amplifier only as much as needed. In normal system operation, one or more users talk and the others listen. A microphone switch on each station allows the talker's microphone to be enabled and allows the listeners to keep their microphones disabled. In this condition, speech intelligibility is enhanced since background noise from other microphones is not present. On the Model CM-300L, a toggle switch turns the microphone on. A channel selector switch allows a choice of two (optionally three) channels. When the switch is on the "1" position the station talks and listens on channel 1, on the "2" position, to channel 2. Pushing the Call Light button transmits a call signal to all other units on the channel selected by the channel selector switch. A call signal on this channel will cause the call light push button to flash. The flash rate is 2 to 5 times a second. The call signal itself is a 20 kilohertz signal. Specifications: Input DC Voltage: TW Mode: 18 to 35 volts DC LP Option: 15 to 35 volts DC Battery: 12 to 35 volts DC (reduced performance) DC Current Drawing from TW Line (Note: LP Option draws no current from TW line): Quiescent: CM-300/RM-300: 23 milliamperes 10% CM-300/RM-300L: 33 milliamperes 10% Operating 25 Ohm headphones: CM-300/RM-300: 37 milliamperes 10% CM-300/RM-300L: 45 milliamperes 10% Operating 25 Ohm headphones + Call Light: CM-300/RM-300: 60 milliamperes 10% Impedance Across Line: 10,000 ohms, minimum Operating Temperature: 0C to 60C Storage Temperature: -40C to 85C Operating and Storage Humidity: 5% to 95% non-condensing Noise Contribution: One Unit: -75 dBu Ten Units: -67 dBu Microphone Preamplifier: Input Impedance: 470 ohms/dynamic mic Source Impedance: 200 ohms, nominal Maximum Input Level: 150 millivolts Frequency Response: 100 hertz to 10 kilohertz 3 dB (-54 dBu input) Limiter Range: 30 dB Carbon Mic Excitation Current: 10 millliamperes, nominal Current Source: Transfer Ratio: 3.3 milliamperes/volt=3.3 millisiemens Output: 5 milliamperes into 200 ohms = 1 volt peak, nominal Headphone Amplifier: Voltage Gain: 34 dB Output Voltage: 8 volts peak-to-peak into 25-1/2 Output Power: 1/2 watt peak into 25 ohms Frequency Response: 150 hertz to 8 kilohertz 3dB Headphone Impedance Range: 25 to 600 O (600 to 2000 with reduced levels) Note: Do not use headphones with impedance less than 25 O. Sidetone Adjustment Range: -20dB to full on Call-Light: Signaling Frequency: 20,000 hertz 100 hertz Flashing Rate: 5 hertz 2 hertz Auxiliary Connections: Headset Connector Dynamic Microphone: XLR type 4-pin female Carbon Microphone: 1/4"standard phone jack, 3-circuit Live Connection Input: XLR type 3-pin female Loop/External: XLR type 3-pin female Dimensions: 2.75" (69.9mm) high, 6.25" (158.75 mm) wide, 6.4" (162.6mm) deep Weight: 1.2 lbs (0.55kg) Finish: Front Panel: Light Gray Enamel Paint Federal Standard 595A Color#26492 Chassis: Gold Iridite over aluminum
