Ametek/Pittman GM9413-2 Compact Gearmotor and 50 similar items

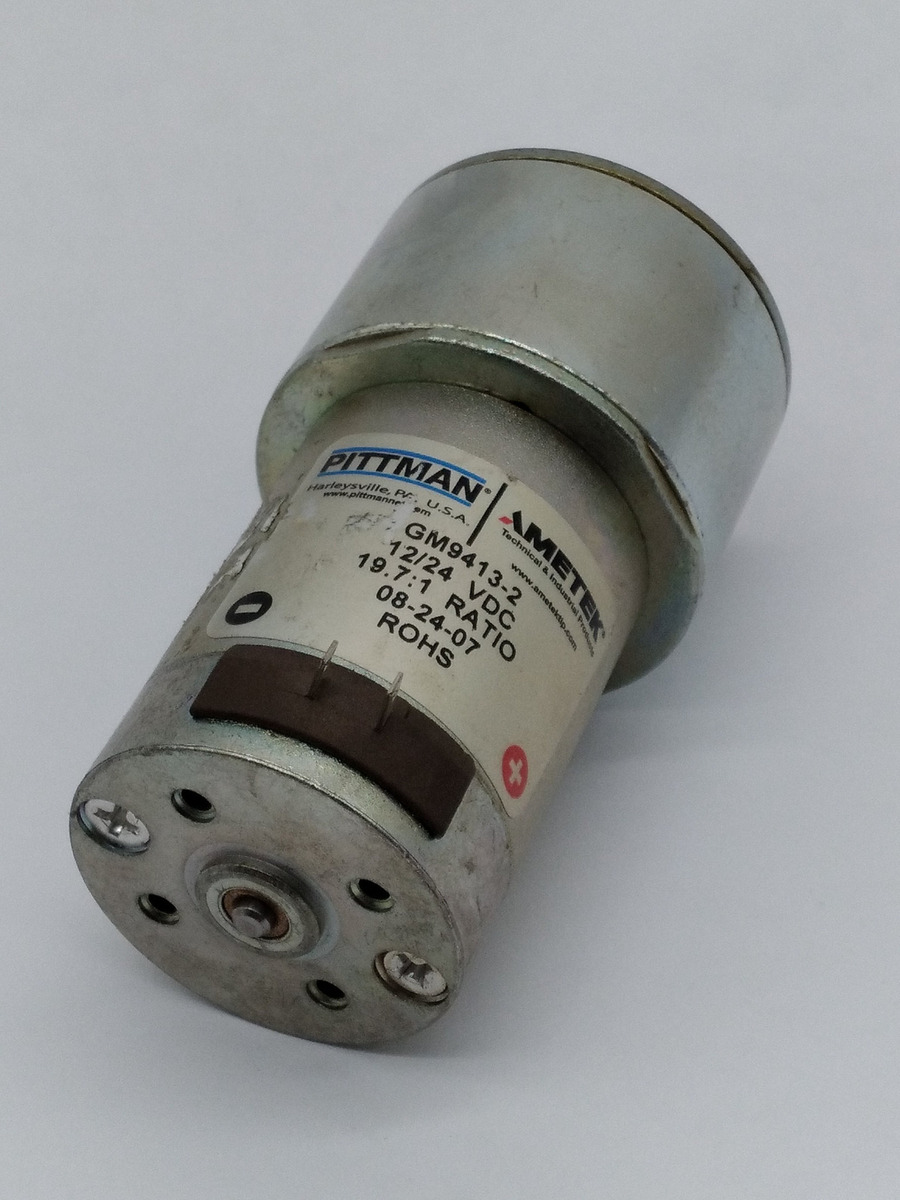

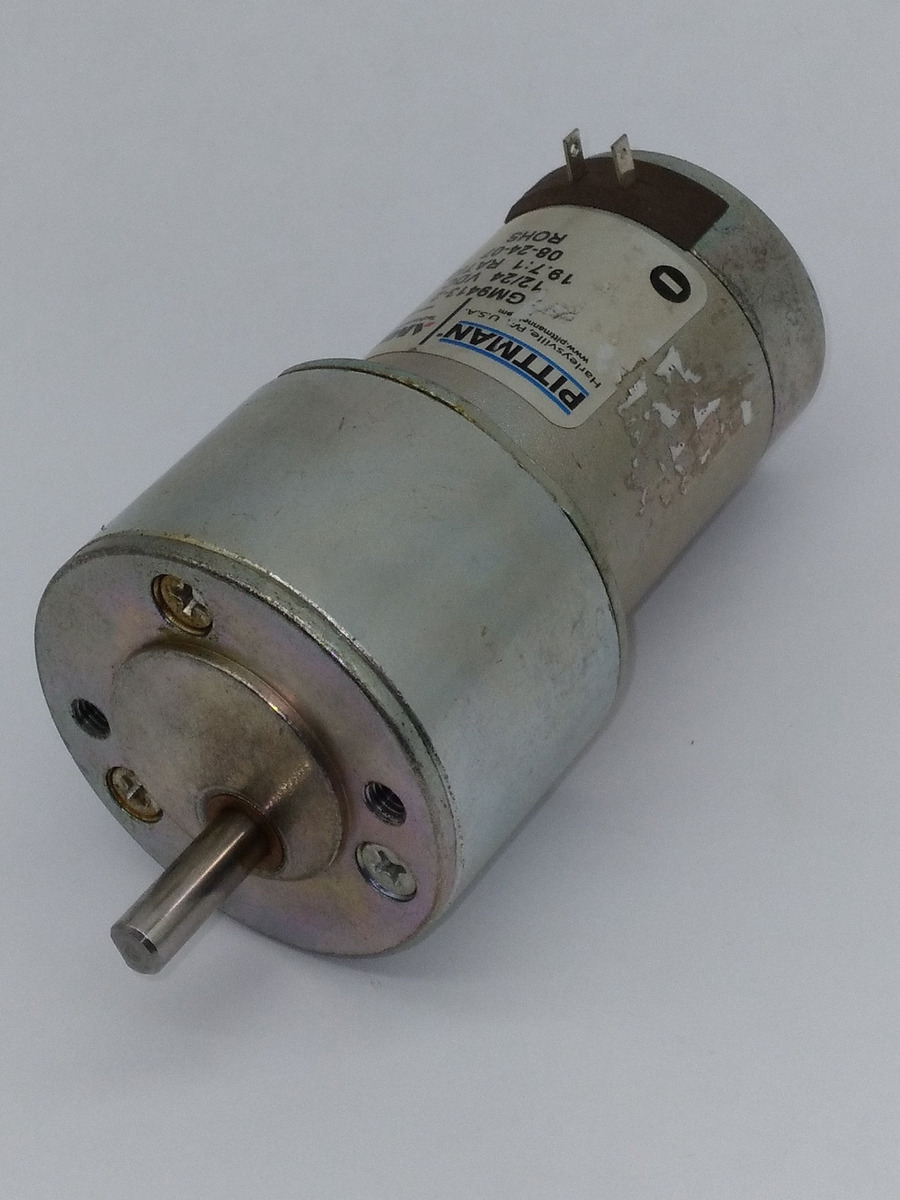

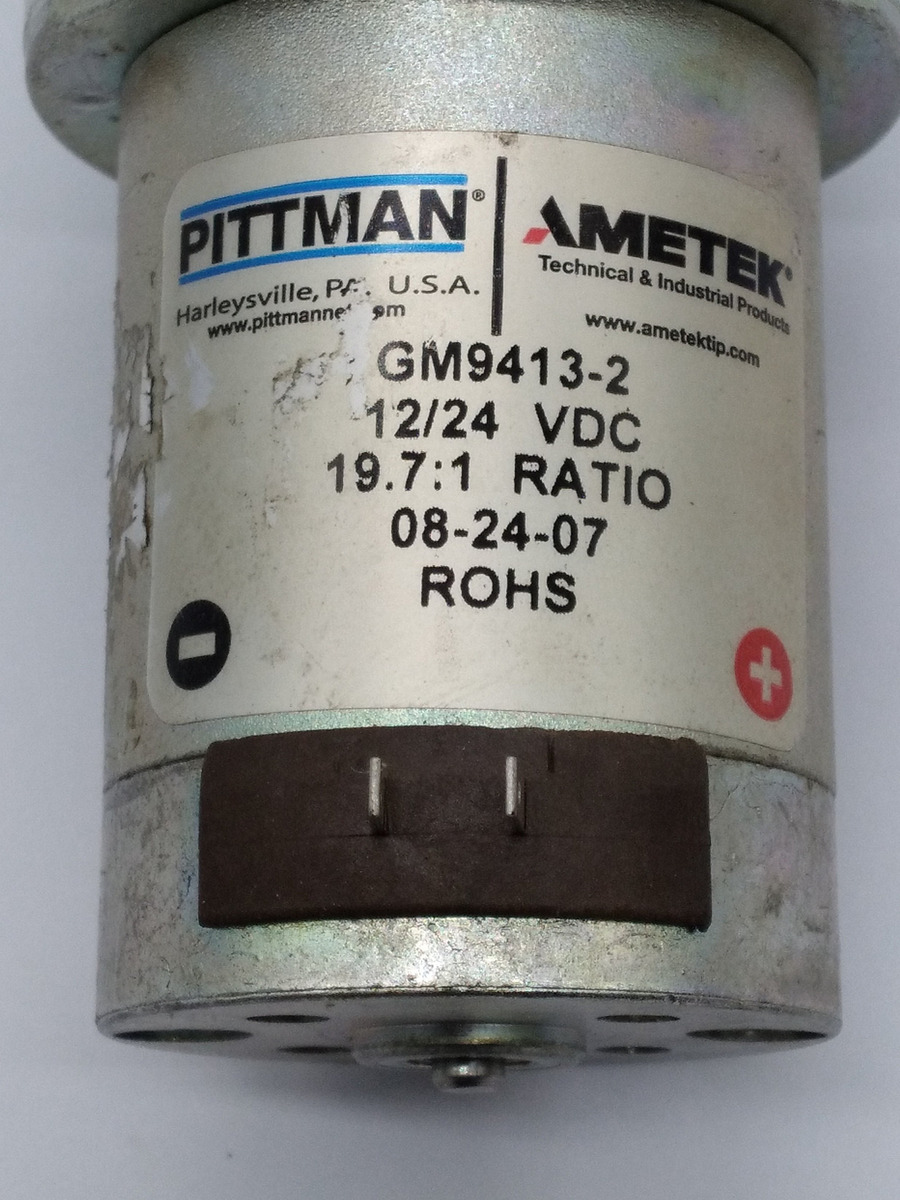

Ametek/Pittman GM9413-2 Compact Gearmotor 12-24VDC Ratio 19.7:1 Condition: Used Dimensions: 6.00 x 6.00 x 6.00 inches (L x W x H) Weight: 2.00 Lbs. Ametek Pittman GM9413-2 compact DC gearmotor with integrated metal gearbox, designed for precise, low-speed, high-torque motion in industrial, robotics, and automation applications, offering dual-voltage operation and robust all-metal construction. Technical specifications Manufacturer: Pittman, Ametek Manufacturer country: United States of America Manufacturer location: Harleysville, Pennsylvania, USA Product type: Brushed DC gearmotor Series: GM94 Compact Gearmotor Series Model: GM9413-2 Rated voltage: 12 VDC / 24 VDC Motor type: Permanent magnet brushed DC motor Gearbox type: Integrated spur gearhead Gear ratio: 19.7:1 Reduction stages: Multi-stage planetary/spur (series-standard construction) Output shaft type: Single round shaft Output shaft material: Steel Output shaft orientation: In-line with motor axis Shaft features: Plain round shaft, no visible flat or keyway Mounting style: Front face mount with threaded holes Housing material: Steel motor can with metal gearbox housing Housing finish: Metallic zinc/nickel plated finish Electrical connection type: Rear solder tabs Polarity marking: Clearly marked positive terminal on motor housing Compliance: RoHS compliant Cooling method: Natural air convection Direction of rotation: Reversible by polarity Environment: Indoor, dry industrial use Date code / lot marking: 08-24-07 Weight: Not specified on nameplate Overall dimensions: Not specified on nameplate Rated speed: Not specified on nameplate Rated torque: Not specified on nameplate Rated current: Not specified on nameplate Typical applications: Robotics, automation equipment, positioning systems, medical devices, laboratory instruments, and precision motion control systems Please review pictures carefully and let us know if you have any questions! Powered by KiipList.com
