New Genuine Ford Motorcraft WPT-1716 and 50 similar items
NEW Genuine Ford MOTORCRAFT WPT-1716 CONNECTOR CU2Z-14S411-MB
$5.50
View full item details »
Shipping options
Estimated to arrive by Wed, Jun 4th.
Details
$4.10 via USPS Ground Advantage (2 to 3 business days) to United States
Return policy
Full refund available within 30 days
Purchase protection
Payment options
PayPal accepted
PayPal Credit accepted
Venmo accepted
PayPal, MasterCard, Visa, Discover, and American Express accepted
Maestro accepted
Amazon Pay accepted
Nuvei accepted
View full item details »
Shipping options
Estimated to arrive by Wed, Jun 4th.
Details
$4.10 via USPS Ground Advantage (2 to 3 business days) to United States
Return policy
Full refund available within 30 days
Purchase protection
Payment options
PayPal accepted
PayPal Credit accepted
Venmo accepted
PayPal, MasterCard, Visa, Discover, and American Express accepted
Maestro accepted
Amazon Pay accepted
Nuvei accepted
Item traits
Category: | |
---|---|
Quantity Available: |
29 in stock |
Condition: |
New |
Brand: |
Motorcraft |
MPN: |
WPT-1716 |
UPC: |
031508559691 |
Listing details
Seller policies: | |
---|---|
Shipping discount: |
Items after first shipped at flat $0.25 |
Posted for sale: |
More than a week ago |
Item number: |
1537679308 |
Item description

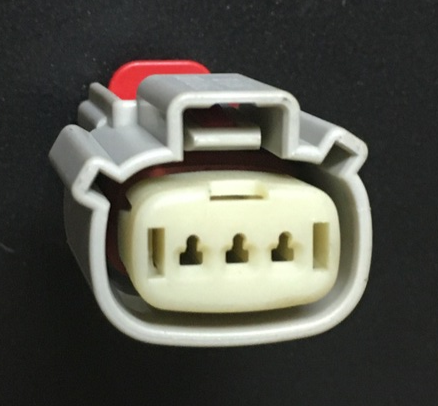

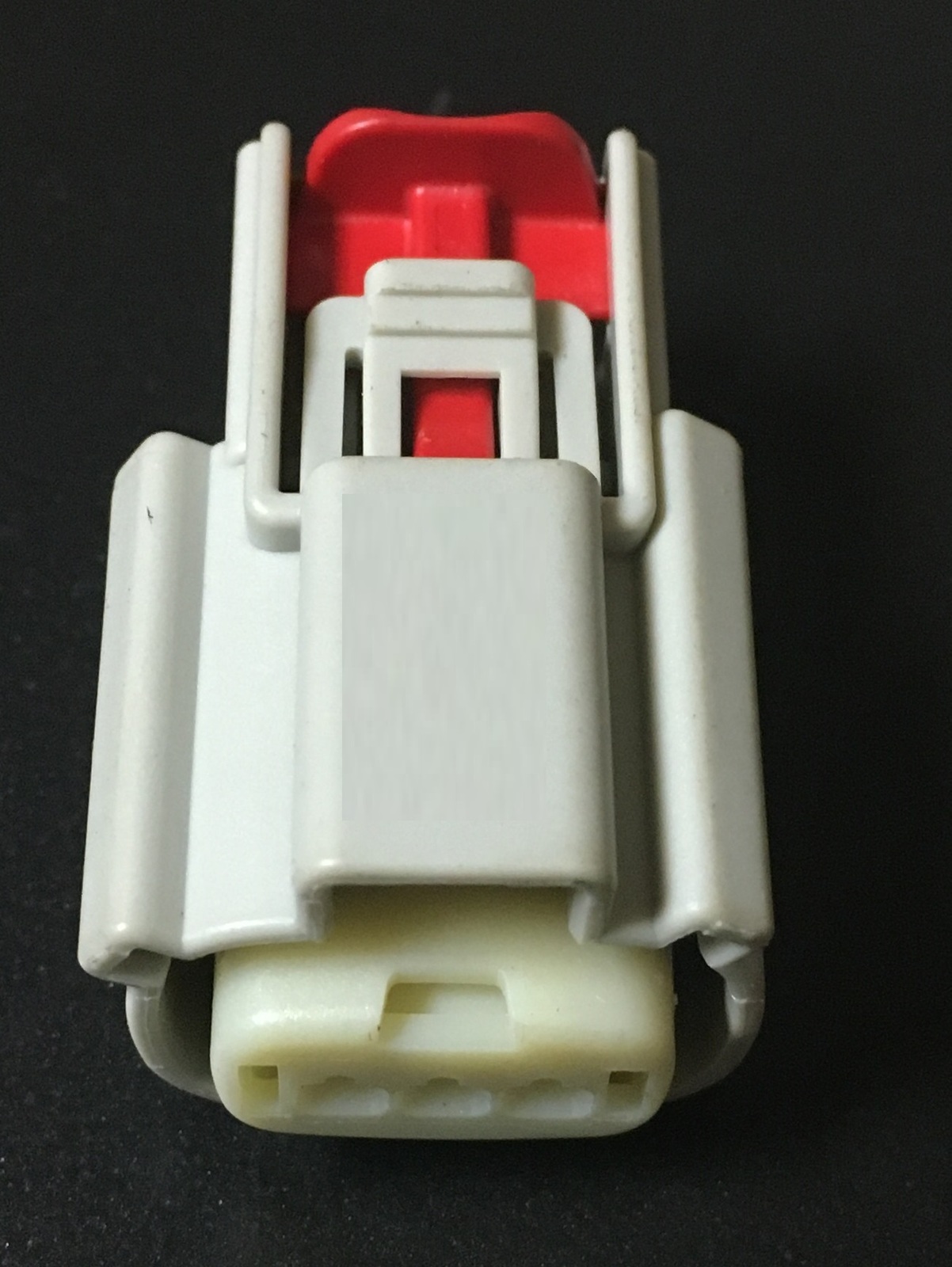

Genuine Ford Motorcraft. Arrives fully assembled and ready for installation.
Connector Assembly Includes:
Connector Housing (20% glass reinforced. Knockoff Chinese version: not so much)
Grommet cap
PLR (Primary Lock Reinforcement Device)
CPA (Connector Position Assurance Device)
Mat seal
Ring seal
ELECTRICAL SPECIFICATIONS (Cheap Chinese connectors actually allow arcing)
Voltage: 250 Volts
Current: 22.0 Amps
Contact Resistance: 10 milliohms max.
Dielectric Withstanding Voltage: 500 Volts DC
Insulation Resistance: 20 Megohms min.
You will want to reuse your factory original wiring and terminals.
1. Simply remove the wire/terminal assemblies from the old connector (feel free to break it apart as you have new ones! Just be careful to not damage your wire/terminals).
2. Do note the position of each wire in relation to the connector.
3. Insert the wire/terminals into the new connector. You should hear an audible click.
4. From the front of the connector, push the white PLR inward to lock the terminals in place.
5. Install connector on coil.
6. Push the red CPA forward to lock the connector in place.
7. Rinse and repeat with each connector.
8. Done.
APPLICATIONS:
Ford Flex 2010 - 2012
Ford Taurus 2010 - 2012
Lincoln MKS 2010 - 2012
Lincoln MKT 2010 - 2012
Ford F-150 2015 - 2017
Ford F-150 2015 - 2017
Ford Edge 2015 - 2018
Ford Mustang 2015 - 2023
Lincoln Navigator 2015 - 2023
Ford F-250 Super Duty 2017 - 2023
Leads: 3.
Driving lamp.
Intake Manifold Runner Controller.
Water In Fuel Sensor
For Daytime Running Lamps or Interchangeable with WW 1261.
